Kwikset
Kwikset 600 Series 660 514 SMT RCAL/5303 Deadbolt, 3 Grade, Keyed Key, Zinc, Matte Black, 2-3/8 to 2-3/4 in Backset
- Backset Size: 2-3/8 to 2-3/4 in
- Backset Type: Adjustable
- Commercial/Residential: Commercial Residential
- Cross Bore Diameter: 2-1/8 in
- Design: Traditional
- Model #: 660514SMTRCAL5303
- UPC #: 883351934374
- SKU: 7525975
Your shopping list will be used for pickup in-store
Product Details
Kwikset 600 Series Deadbolt, Design: Traditional, Security Grade: 3, Number of Cylinders: 1, Keyway Type: KW1, Key Type: Keyed, Re-Key Technology: SmartKey, Backset Type: Adjustable, Backset Size: 2-3/8 to 2-3/4 in, Latch Type: Adjustable, Round Corner, Throw Length: 1 in, Cross Bore Diameter: 2-1/8 in, Edge Bore Diameter: 1 in, Projection Size: 1-1/16 in, Door Thickness: 1-3/8 to 1-3/4 in, Interior Locking: Turn Piece, Commercial/Residential: Commercial, Residential, Zinc, Matte Black, Dimensions: 1-1/16 in L x 2-7/16 in W x 2-7/16 in H, Includes: (2) Keys, Latch, Screws and SmartKey ToolKey Features
- For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Securityâ„¢, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- SmartKey Securityâ„¢ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options

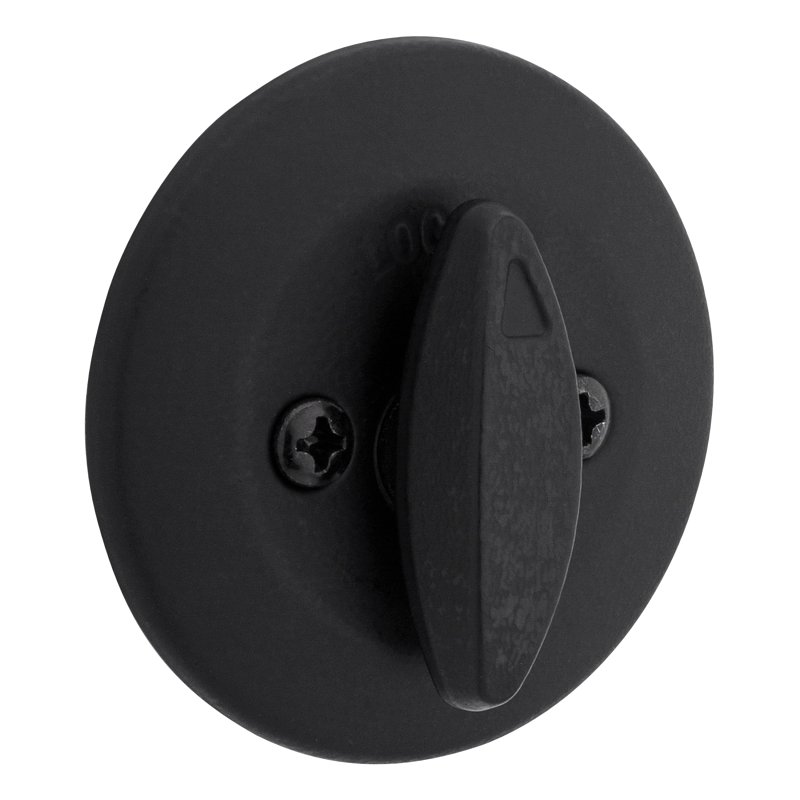

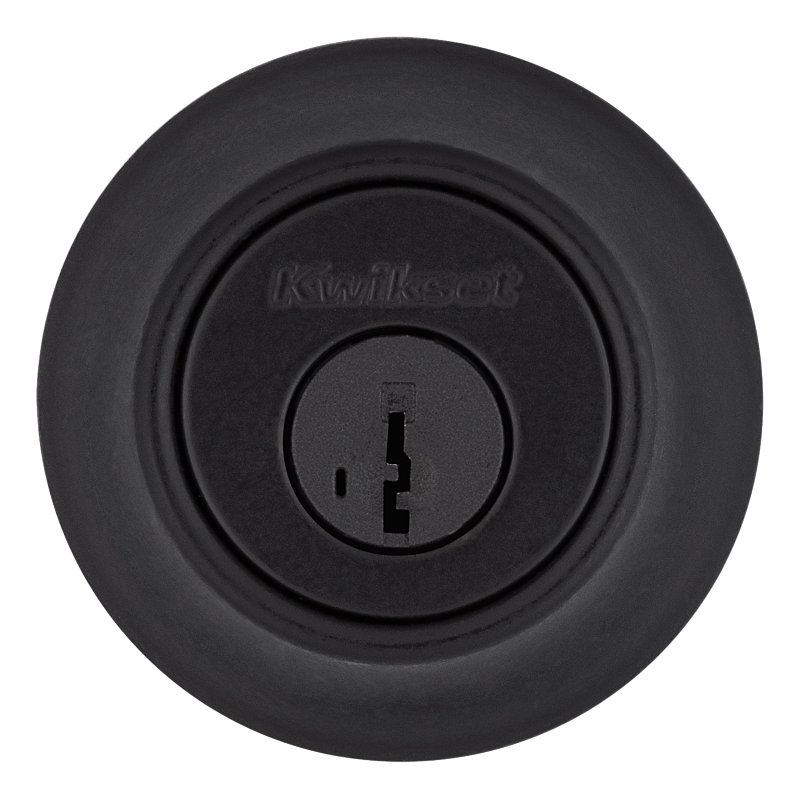

- Deadbolt operated by key outside and thumb turn inside
- Deadbolt latch has round corner faceplate
- Latch has adjustable backset 2-3/8 to 2-3/4 in to fit all standard door preparations

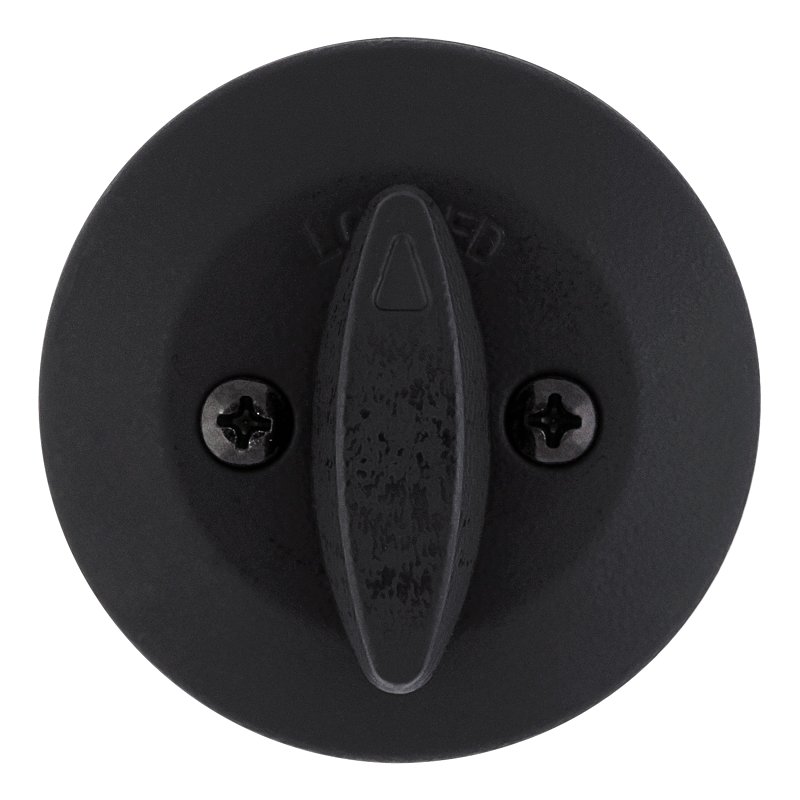

- Locking mechanism functions with turnpiece on the interior of the lock
- Easily installs in minutes with just a screwdriver
- Microban antimicrobial product protection keeps door hardware 999% cleaner than unprotected surfaces
Item Specifications
| Backset Size | 2-3/8 to 2-3/4 in |
|---|---|
| Backset Type | Adjustable |
| Commercial/Residential | Commercial Residential |
| Cross Bore Diameter | 2-1/8 in |
| Design | Traditional |
| Dimensions | 1-1/16 in L x 2-7/16 in W x 2-7/16 in H |
| Door Thickness | 1-3/8 to 1-3/4 in |
| Edge Bore Diameter | 1 in |
| Finish | Matte Black |
| Includes | (2) Keys Latch Screws and SmartKey Tool |
| Interior Locking | Turn Piece |
|---|---|
| Key Type | Keyed |
| Keyway Type | KW1 |
| Latch Type | Adjustable Round Corner |
| Material | Zinc |
| Number of Cylinders | 1 |
| Projection Size | 1-1/16 in |
| Re-Key Technology | SmartKey |
| Security Grade | 3 |
| Throw Length | 1 in |
